The headline promise of modular construction is that the factory and the site work at the same time. While modules are built indoors, the site crew clears the land, installs utilities, and pours foundations. When the modules arrive, the site is ready and the set can begin.
That promise only holds if the site work is planned as carefully as the factory work. A late foundation can erase the schedule gain, and a foundation that is out of tolerance can stop a set in its tracks.
Start site work on the right date
On a site-built project, foundations come first and everything else follows. On a modular project, the foundation has to be complete before the first module ships, which means working backward from the delivery date.
Build a single schedule that ties factory production to site milestones. Include permits, utility approvals, excavation, foundation work, curing time, and inspections. Leave room for weather. Then hold weekly meetings with the factory and the site contractor so both sides know where the other stands.

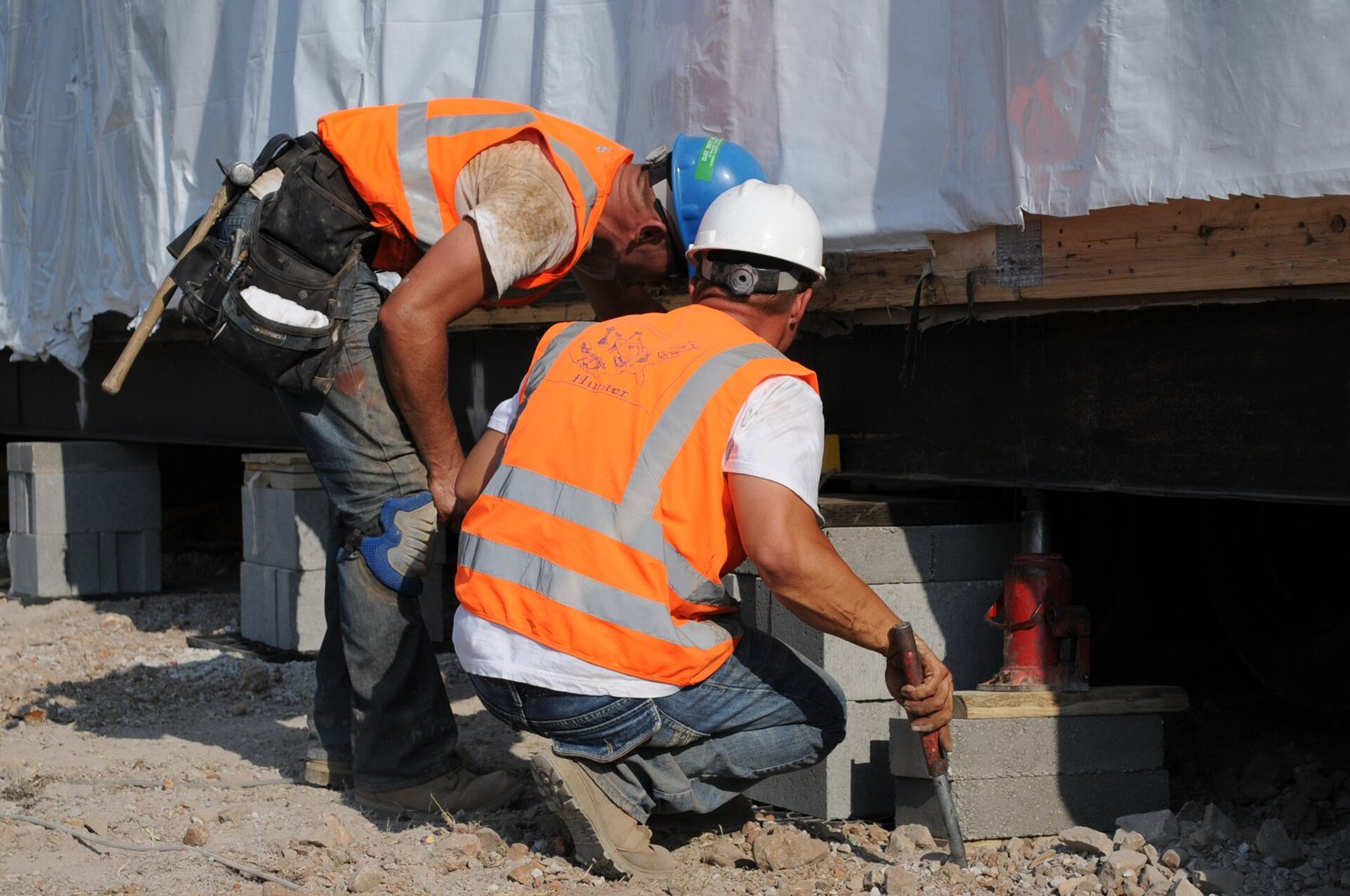

Tolerances matter more than usual
A site-built frame can be adjusted in the field to make up for a foundation that is slightly out of level or square. A module cannot. It arrives as a finished box, and it has to land on a foundation that matches the plans closely.
Ask the manufacturer for its foundation tolerances in writing, and make sure the foundation contractor reads them. Survey the finished foundation before the set, checking elevations, dimensions, anchor bolt locations, and diagonal measurements. Fix any problems before the trucks roll. Correcting a foundation with modules waiting on the road is expensive and stressful.
Coordinate utilities and connections
Modules arrive with plumbing, wiring, and ductwork already installed, and those systems need to meet utilities coming up through the foundation. The locations of water, sewer, power, and gas stubs have to match the module drawings.
Set up a clear responsibility list. Who brings each utility to the building? Who makes the connection between modules? Who handles the connection from the building to the street? These gaps are where many first modular projects lose time. Put the answers in the contracts, not only in meeting minutes, so that nobody can claim later that a connection was outside their scope.
Plan the set area
Cranes and trucks need room. Plan the crane pad, truck access, and a staging area where modules can wait if needed. Check soil bearing for the crane, overhead power lines, and access for long loads.
Think about what happens after the set as well. Grading, paving, and exterior work around the building should be planned so they do not block the crane or damage modules waiting to be placed.
Inspections on site
Even when the modules are inspected in the factory, the local building department will usually inspect the foundation, utility connections, and the work that joins modules together. Find out early which inspections remain local and schedule them into the plan. A missed inspection can hold up the set or the next phase of work.
Site work is not a side task on a modular project. It is half of the schedule. Plan backward from the delivery date, hold the foundation to the manufacturer’s tolerances, settle every utility connection in advance, and prepare the set area well. Do that, and the factory’s head start turns into a real gain for the project.
